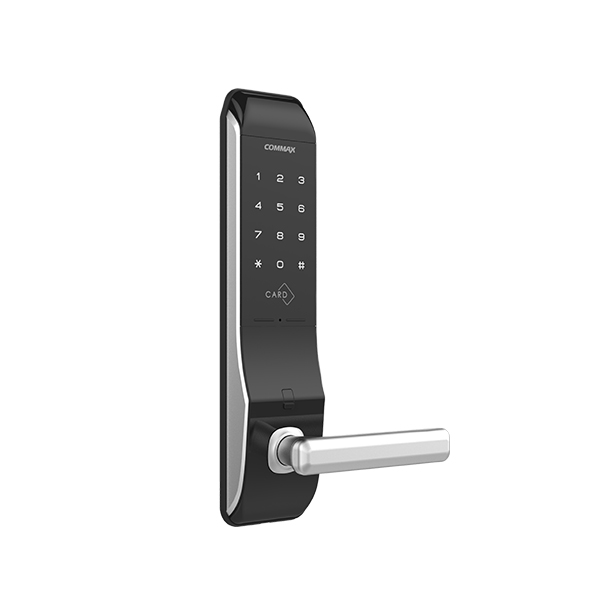

product detail
FUNCTION
- 4 WAY ACCESS methods (RF Card, Pin number, Mechanical Key, BLE)
- Durable body using metallic material for protecting against high temp. and shock
- High Temp. detection, alert and automatic unlocking
- Multi-Layered authentication (Pin number/RF Card/BLE)
- Automatic lock / Re-lock / Double lock functions
- Safe to use the pin number with dummy number
- Anti high-voltage / anti fireproof / anti-hacking system
- Connectivity with home network system using remote controller (Option)
- Emergency power (9V square battery)
SPECIFICATION
| Applicable | Normal fire door | Thickness 35mm ~ 50mm |
|---|---|---|
| Access methods | Pin number | 4~12 digit number combination(Up to 4 pin number) |
| RF card | Up to 30 keys | |
| BLE | CDL-200L | |
| Wireless | Remote control from wallpad | |
| Mechanical Key | Individual mechanical lock | |
| Power source | DC 6V | Alkaline AA battery, 8pcs (LR6 1.5V AA size) |
| Emergency | DC 9V | Alkaline battery (Optional) |
| Type of product | Fireproof type, Temperature sensor type, Key type, Master key door lock | |
| Temperature alarm | Temperature sensor | 60 degree ± 5 degree (Normal test) |
| Option | Remote module(CDL-447) | |
| Dimension(mm) | 310(H)×65(W)×75(D) | |
INSTALLATION
