product detail
FUNCTION
• Durable body using metallic material
• Automatic lock / Re-lock / Double lock functions
• Multi-registrations for pin-number & RFID Card
• Multiple volume control / optional mute
• Easy to detectable Blue-light button
• Emergency power (9V square battery)
• Anti high-voltage / anti fireproof / anti-hacking system
SPECIFICATION
| Applicable | Normal fire door | Thickness 40mm ~ 50mm |
|---|---|---|
| Access methods | Pin number | 4~12 digit number combination(Up to 4 pin number) |
| RF Card | Up to 30 keys | |
| Power source | DC 6V | Alkaline AA battery,4pcs (LR6 1.5V AA size) |
| Emergency | DC 9V | Alkaline battery (Optional) |
| powerType of product | Temperature sensor type, Key type, Half Master keydoor lock | |
| Temperature alarm | Temperature sensor | 72 degree ± 5 degree (lat tested)62 degree ± 5 degree (Normal test) |
| Dimension (mm) | 228.9(H)×77.4(W)×21(D) | |

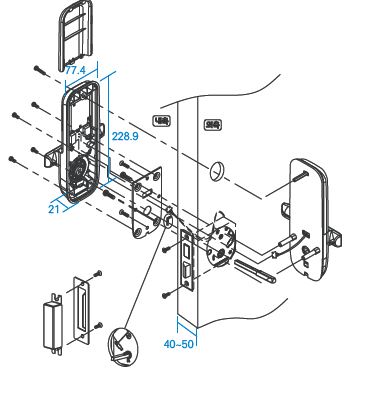

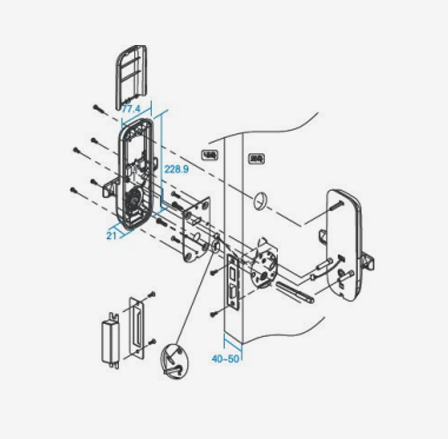

INSTALLATION
WIRING
CAUTIONS FOR INSTALLATION
