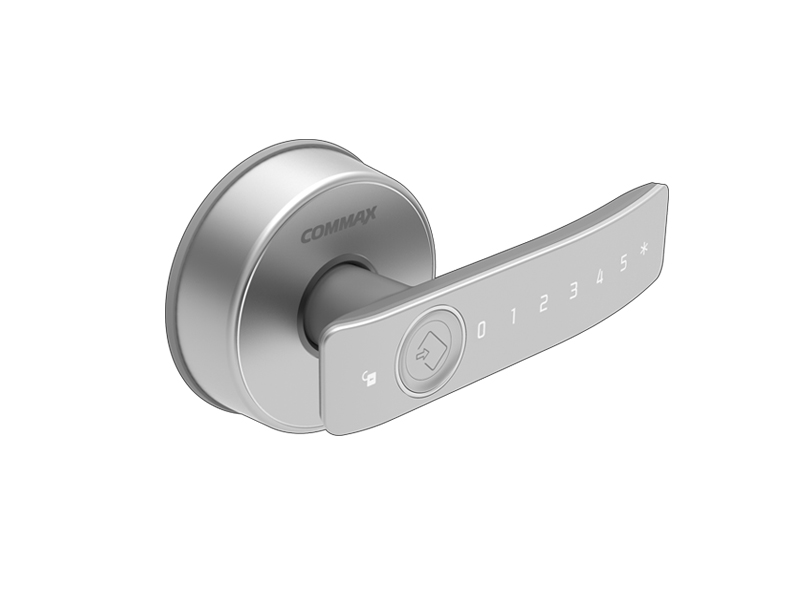

ROCK AND LOCK CDL-100WL
- 2 WAY ACCESS methods (RF Card, Pin number)
- Durable body using metallic material for protecting against high temp. and shock
- High Temp. detection, alert and automatic unlocking
- Multi-Layered authentication (RF Card, Pin number)
- Automatic lock / Re-lock / Double lock functions
- Safe to use the pin number with dummy number
- Anti high-voltage / anti fireproof / anti-hacking system
- Connectivity with home network system using remote controller (Option)
- Emergency power (9V square battery)
- Durable body using metallic material for protecting against high temp. and shock
- High Temp. detection, alert and automatic unlocking
- Multi-Layered authentication (RF Card, Pin number)
- Automatic lock / Re-lock / Double lock functions
- Safe to use the pin number with dummy number
- Anti high-voltage / anti fireproof / anti-hacking system
- Connectivity with home network system using remote controller (Option)
- Emergency power (9V square battery)
product detail
FUNCTION
- 2 WAY ACCESS methods (RF Card, Pin number)
- Durable body using metallic material for protecting against high temp. and shock
- High Temp. detection, alert and automatic unlocking
- Multi-Layered authentication (RF Card, Pin number)
- Automatic lock / Re-lock / Double lock functions
- Safe to use the pin number with dummy number
- Anti high-voltage / Anti-hacking system
- Emergency power (9V square battery+Micro USB 5pin)
SPECIFICATION
| Applicable | Normal fire door | Thickness 35mm ~ 50mm |
|---|---|---|
| Access methods | Pin number | 4~12 digit number combination(Up to 4 pin number) |
| RF card | Up to 30 cards | |
| Wireless | Remote control from wallpad | |
| Power source | DC 6V | Alkaline AA battery,8pcs (LR6 1.5V AA size) |
| Emergency | DC 9V | Alkaline battery (Optional) Micro USB 5pin |
| Type of product | Fireproof type, Temperature sensor type | |
| Temperature alarm | Temperature sensor | 60 degree ± 5 degree (Normal test) |
| Option | Remote module(CDL-100WLC) | |
| Dimension (mm) | 95(W)x95(H)x71(D) | |
INSTALLATION
