FEATURES

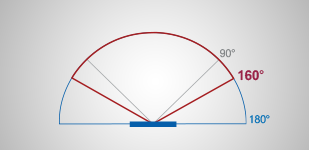

160° ANGLE of VIEW                                                                       PAN/TILT/5 STEP ZOOM                                          NAVIGATION BUTTON

Pan tilt camera and videophone to eliminate              • Pan tilt camera and videophone to eliminate blind spots     User convenient Touch & navigation button

blind spots                                                                   • Accurately catch your moment via 5 step zoom

FUNCTION

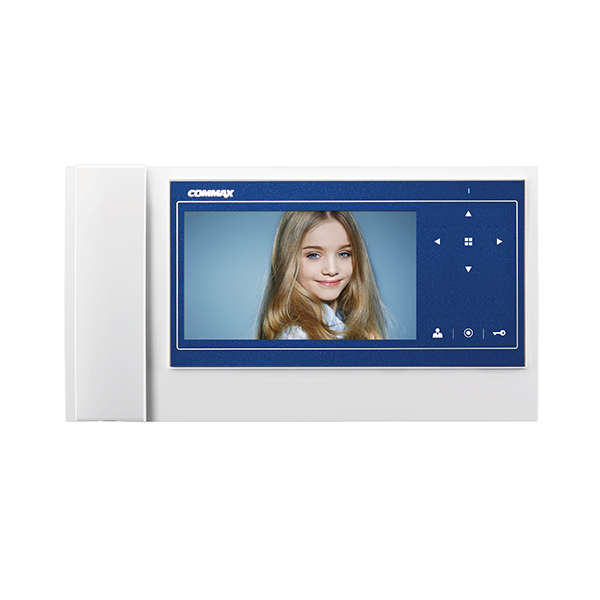

• 7 inch TFT LED display

• Digital Pan-Tilt(160˚ angle of view)

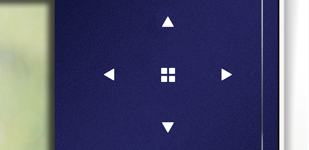

• Navigation buttons applied to maneuver display

• 5 Step Zoom

• Support 2 Monitors, 2 Cameras and 2Interphones

• PAL/NTSC convertible

SPECIFICATION

Power source:       AC 100-240V, 50/60Hz

LCD size:              7 inch TFT LED display

Mount type:           Surface-mounted type

Operating temp:     0℃~40℃

Wiring:                  Door camera: 4 wires(Polarity) / Interphone: 4 wires(Polarity)

Distance:              Door camera: 50m(0.65Ø) / Interphone: 20m(0.65Ø)

Consumption:       Max.16W/standby 3.9W

Dimension(mm):   311×168×32

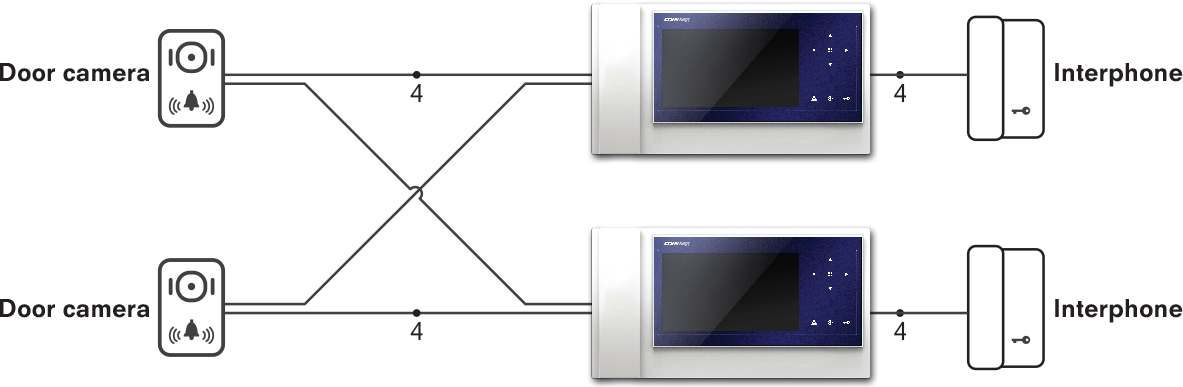

WIRING DIAGRAM
