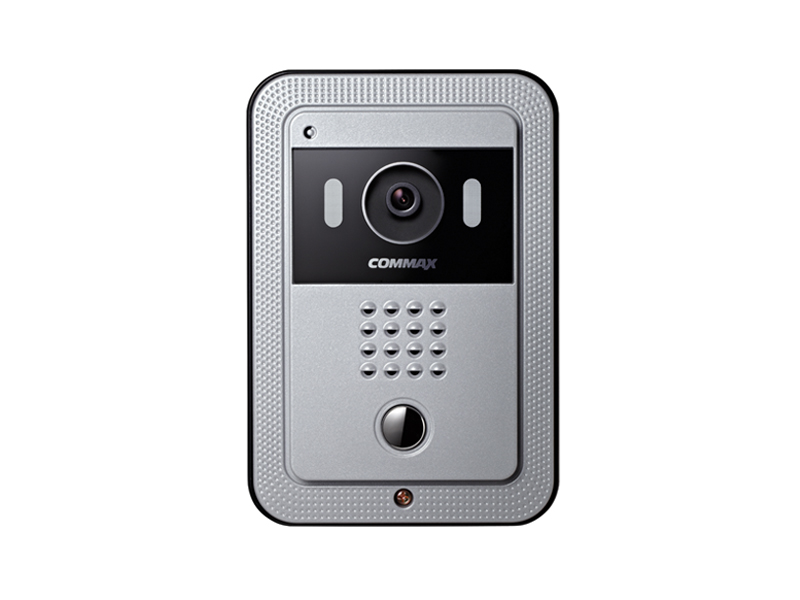

FUNCTION

• Illuminance sensor
• Out door model
• Flush-mounted type
• House call and talk

SPECIFICATION

Power source:               12V(From monitor)

Operation Temp:           -10℃~+50℃

Wiring:                           4 wire with polarity

Minimum:                       0.1Lux (up to 300mm)

Lighting:                         Built-in white LED (3pie) 2 EA

Camera view:                 Horizontal: 68° Vertical: 50°

Camera angle"                Ascendant: 13° Descendant: 13°

Scanning:                        NTSC/PAL

Distance:                        28m(0.5Ø) 50m(0.65Ø)

Image Sensor:               CMOS(1/4 inch)

Dimension(mm):            119(W)×178(H)×23(45)(D)
