FEATURES

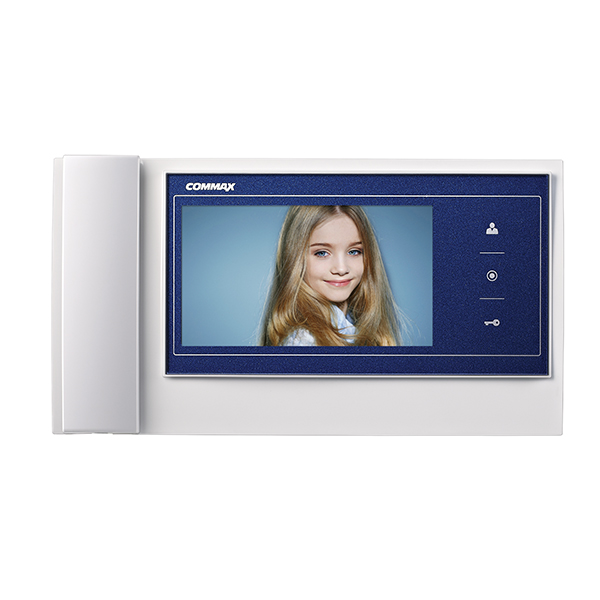

7 INCH WIDE LCD                                                             VIVID DISPLAY AND                                                   LED BACKLIGHT

Monitor visitors via 7 inch wide display LCD.                 It leads the world color video phone markets providing    Provide vivid pictures by utilizing LED

                                                                                      undistorted clear view and outstanding quality.                    backlight.

FUNCTION

• 7 inch TFT LCD screen
• Video talk and door lock release enable (both individual and public entrance)
•
• Expandable up to 2 monitors with 2 CCTV cameras and 2 door cameras
• Memory storing in SD memory (CDV-70KM)

SPECIFICATION

Power source:   AC 100-240V, 50/60Hz

LCD size:          7 inch wide color LCD

Mount type:       Surface-mounted type

Operating temp:0℃~40℃

Wiring:               *Door camera: 4 wires(Polarity)
                          *Interphone: 4 wires(Polarity)

Distance:           *Door camera: 50m(0.65Ø)
                          *Interphone: 20m(0.65Ø)

Consumption:      Max.16W/standby 3.9W

Dimension(mm):  311(W)×168(H)×32(D)

WIRING DIAGRAM

ACCESSORY
