FEATURES

TOUCH BUTTON                                                                VIVID DISPLAY AND                                                                LED BACKLIGHT

A gleaming touch button creates an emotional space.        It leads the world color video phone markets           Provide vivid pictures by utilizing LED backlight.

                                                                                  providing undistorted clear view and outstanding quality.

FUNCTION

• 3.5 inch TFT LCD screen
• Video talk and door lock release enable (both individual and public entrance)
• Support 2 Monitor, 2 Camera and 2 Interphones
• PAL/NTSC convertible

SPECIFICATION

Power source: AC 100-240V, 50/60Hz

LCD size:         3.5 inch wide color LCD

Mount type:      Surface-mounted type

Operating tem: 0℃~40℃

Wiring:              Door camera: 4 wires(Polarity) Interphone: 4 wires(Polarity)

Distance:          Door camera: 50m(0.65Ø) Interphone: 20m(0.65Ø)

Consumption:   Max.10W/standby 3.4W

Dimension(mm):240(W)×121(H)×27(D)

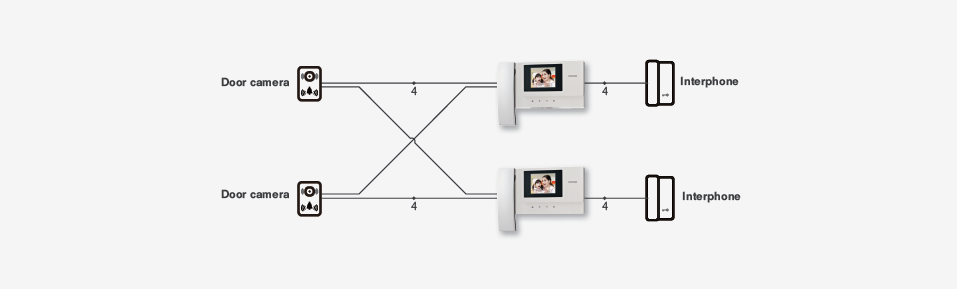

WIRING DIAGRAM

ACCESSORY
