FEATURES

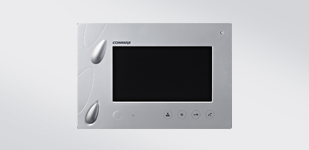

iF DESIGN AWARD                                                                  VIVID DISPLAY AND                                           LED BACKLIGHT

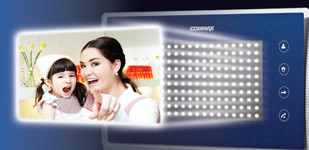

A modern design with curves, a delicate blue light,        It leads the world color video phone markets          Provide vivid pictures by utilizing LED backlight.

and touch buttons are applied to create an                   providing undistorted clear view and outstanding

emotional-affective  space.                                            quality.

FUNCTION

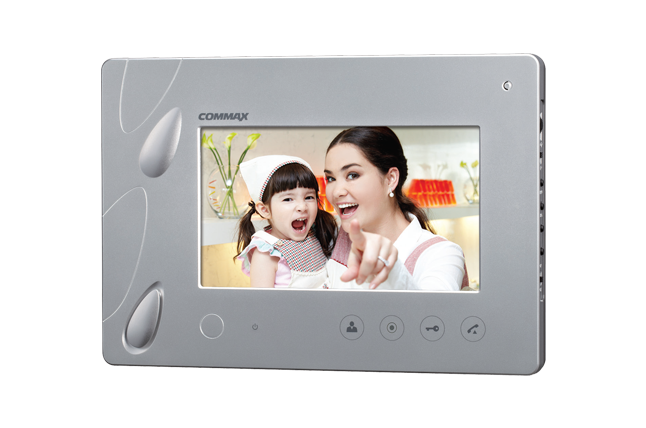

• 7 inch TFT LCD screen
• Video talk and door lock release enable (both individual and public entrance)
• Support 2 Monitor, 2 Camera and 2 Interphones
• PAL/NTSC convertible

SPECIFICATION

Power source:      AC 100-240V, 50/60Hz

LCD size:             7 inch wide color LCD

Mount type:          Surface-mounted type

Operating temp:   0℃~40℃

Wiring:                 Door camera: 4 wires(Polarity) Interphone: 4 wires(Polarity)

Distance:             Door camera: 50m(0.65Ø) Interphone: 20m(0.65Ø)

Consumption:      Max.15W/standby 3.4W

Dimension(mm):  243(W)×168(H)×30(D)

WIRING DIAGRAM
