FEATURES

FINE COMMUNICATION

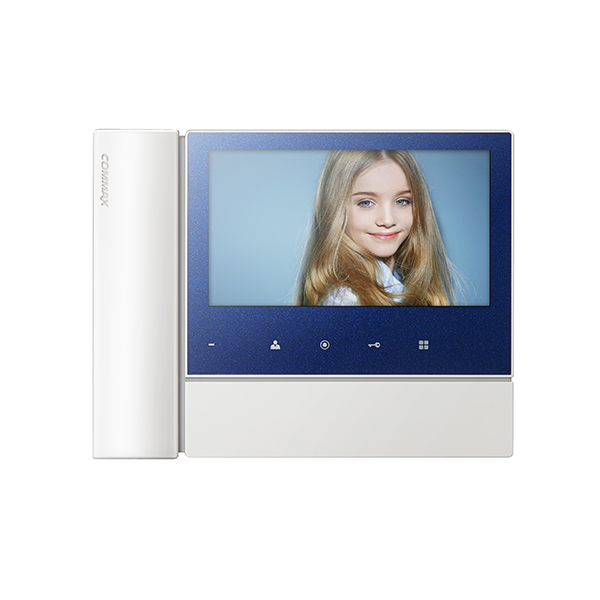

7” color monitor that applied vivid FINE VIEW technology and outstanding audio quality with hand set.

INTERCOMMUNICATION

Up to 2 monitors and interphones each are expandable per household, providing intercommunication function.

DOOR ENTRY

It creates a safer and more convenient living environment with entrance front door release control function.

FUNCTION

• Handset type design
• Video talk and door lock release enable
• Support 2 monitors, 1 cameras and 2 Interphones(CDV-70N)
• Support 2 monitors, 2 cameras and 2 Interphones(CDV-70N2)
• Memory storing in SD memory (SD Card is not included CDV-70NM)

SPECIFICATION

Power source:    AC 100-240V, 50/60Hz

Mount type:        7 inch TFT LCD

Operating temp: Wall-mounted type

Wiring:                Door camera : 4 wires
                           Interphone : 4 wires

Distance:            Door camera : 50m(0.65Ø)
                           Interphone : 30m(0.65Ø)

Consumption:     Max. 16W/standby 3W

Dimension(mm):230(W)x180(H)x28(D)

WIRING DIAGRAM
