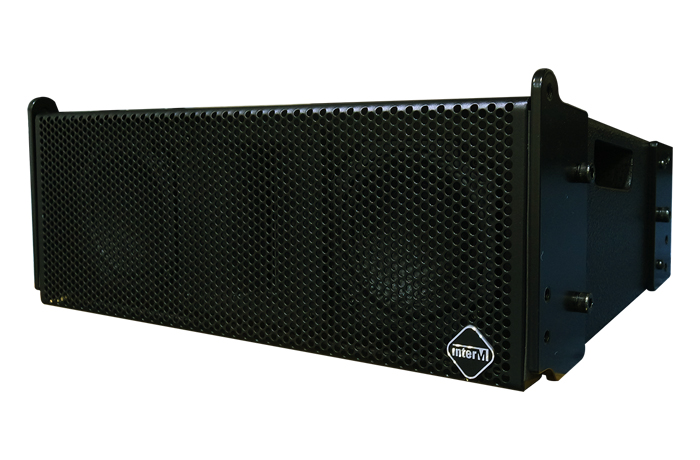

NLA-5 is designed in compact size to avoid the limitation of line array speaker in small-sized venue. Two units of 5” high performance woofer driver are equipped with individual housing, and one 1” high power titanium compression driver is equipped with waveguide to form a line sound of upper range for line array speaker.
For NLA-5, several cabinets are supposed to be vertically arrayed, and the maximum quantity of the unit is 8 pieces. Each speaker can be adjusted from 0° to 10° vertically, and different type has different increment unit: Bolt type is 5°, and pin type is 1°. According to each speaker’s vertical angle adjustment, the whole speaker array’s direction angle is decided.
