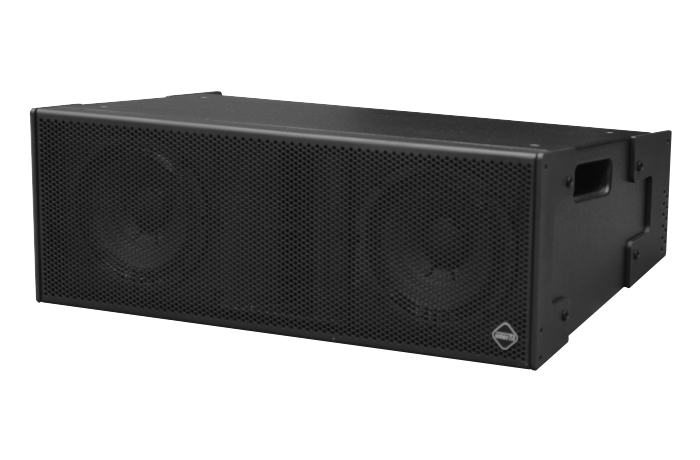

Dual 8" 2Way Bi-amp Line Array Speaker - NLA-8
NLA-8 series is 8” line array speaker system which is designed to be suitable for small-medium sized venue. Two units of 8” high performance woofer driver are equipped with the speaker, and two 1” high power titanium compression drivers are equipped with waveguide to form a line sound of upper range for line array speaker. Compression driver delivers clear voices in 90° wide range, and also able to play precise sound image by built-in phase plug.
In line array composition, it is able to play wide frequency with NLA-8 array speaker, and also user can add NLA-18S subwoofer for more powerful bass. The NLA-18S can be flying with NLA-8, or separately stacked to the ground.
product detail
  • 2x8” LF driver / 440W AES
  • 2x1” HF driver / 60W AES
  • Plane wave Guide
  • 90deg Horn
  • 16/8 ohms LF/HF impedance
  • 8 boxes Rigging
  • Maximum of 16 vertical rigging safety factor(5:1)
  • Premium driver units
  • Use of exclusive wave guide that avoids interference and is easy to send linear source
  • Angle setting function per 1˚ from 0˚ to 10˚ (Bolt type/Pin type)
  • DSP Preset provided for CSP-4.8 (Digital Sound Processor) or D-3000/D-6000
  • Supports bot type and pin type for easy installation

Catalog download
