FEATURES

• Variable system composition(6 or 12 units)
• ID setting enabled with dip switch
• Effective calling to all units by paging function

FUNCTION

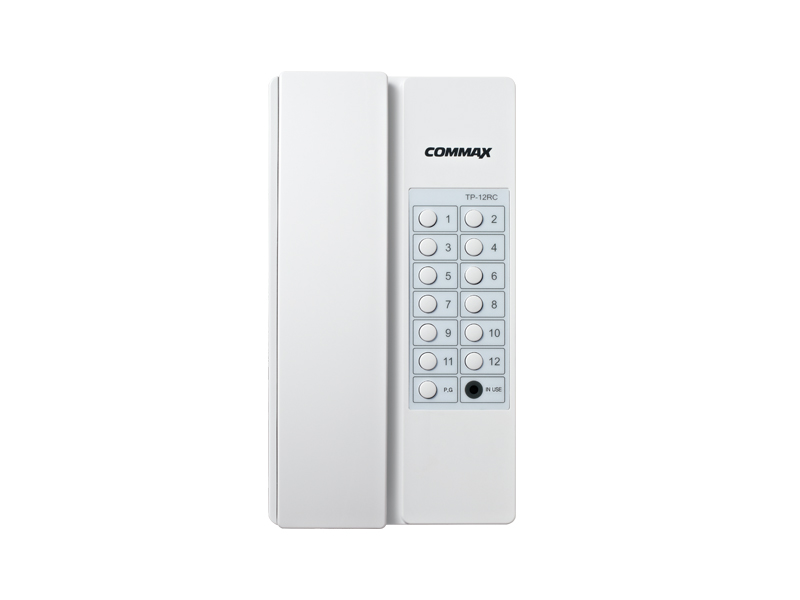

• Variable system composition(TP-6RC: 6 units/ TP-12RC: 12 units)
• ID setting enabled with dip switch
• Effective calling to all units by paging function
• Doorlock release
• Calling & paging

SPECIFICATION

Power source:     DC 12V, 200mA

Mount type:         Wall-mounted type

Wiring:                 Common 4 wires

Distance:             500m(0.65Ø)

Dimension(mm): 116(W)×208(H)×43(65)(D)

INSTALLATION
