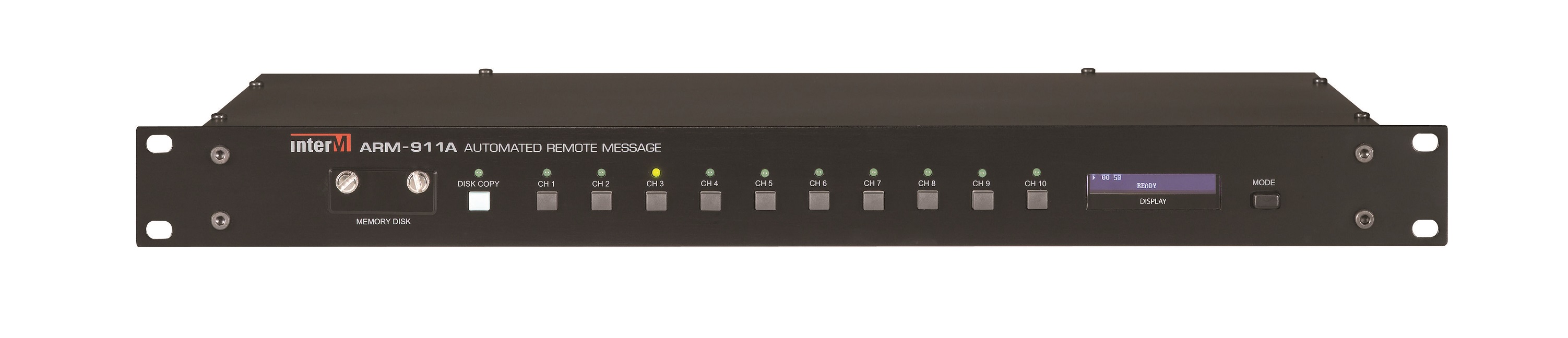

Automated Remote Messaging - ARM-911A
The ARM-911A responds to public address requirements and Voice Alarm Messaging for small to medium installations. The ARM-911A is a high performance highly versatile stand-alone automated remote messaging controller. This unit is an ideal add on to any existing or new installation PA system and useful to easily initiate code blue paging or lockdown procedures.
Up to 4 remote microphones can be connected to the ARM-911A. The microphone can be used for live instant voice messaging. 10 buttons on the microphone station are used to activate any messages. A telephone paging input allows the ARM-911A to be connected to the paging port of a PBX for live telephone paging and message triggering.
Each input is fitted with volume controls, High pass filter, equalizers and user programmable input priority settings. 2 auxiliary inputs allow connection to a cordless microphone, background music source or receiving audio from other emergency messaging devices such as fire alarm panels. Ten contact closure or alarm inputs make it possible to obtain external trigger and broadcast pre-programmed message from any remote devices.
A built in programmable timer allows for scheduled payback of any of the 10 recorded message and other web-browser control panel up-loadable files. The ARM-911A can also be used for both electronic School bell and automated message playing.
product detail
  • Feature

     - Direct broadcasting of Emergency Message

       By pressing one of 10 instant play buttons, message file can be directly played.

     - SD Card Backup

       Backup SD card is installed inside so that Front SD card can be copied to the backup SD card.

     - MP3 Decoding

       MP3 file format is supported.

     - Remote Control by Network

       Using Network, ARM-911A can be controlled at remote place.

     - Remote Control by RS-232C

       Using RS-232C, ARM-911A can be controlled at remote place.

     - Remote Control by Tel In (DTMF)

       Using telephone, 10 front buttons can be controlled and voice can be broadcasted.

     - Scheduling by Network

       Using Network, scheduled broadcasting can be done.

     - Variable Input sensitivity of AUX Input

       Using GUI (Graphic User Interface), the Input sensitivity can be selected -50dBu, -10dBu or +4dBu.

     - Contact Input

       Using 10 Contact Inputs, 10 front buttons can be controlled.

     - Contact Output

       The contact closures can be programmed as external trigger if any messages and schedaled broadcasting is set to trigger the contact closure when it activates in web browsing interface.

     - Fault Output

       NO, NC fault dry contact is provided.
