Feature

- 16 X 8 AUDIO MATRIXES

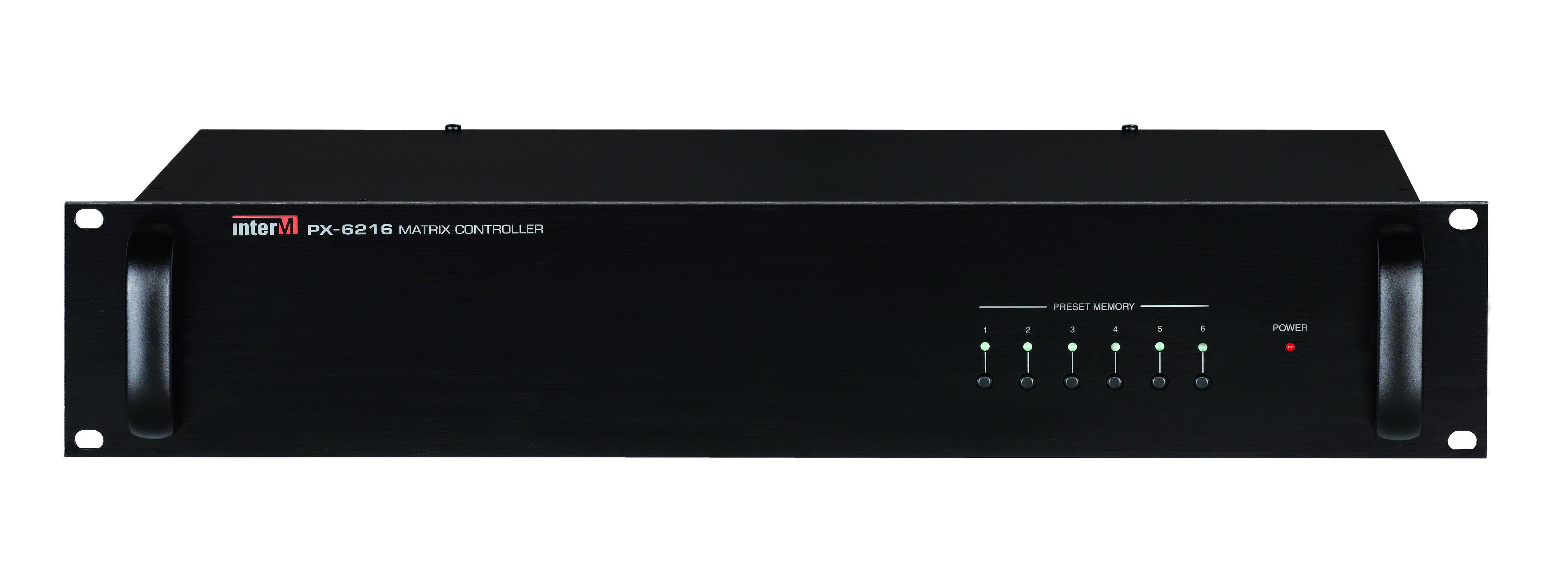

• Digital audio matrix, 16 inputs x 8 outputs. Computer controlled, this unit is the main component of the 6000
• system 8 bus. (EM, Timer, RM x4, BGM x10).

- PC CONTROL

• System Control and configuration is possible via our windows based system software. Remote operation and
• connectivity is made possible using the DIB-6000.

-PRIORITY BROADCASTING CONTROL

• Connected to the EP-6216, emergency panel, timer and 4 remote microphone (RM-6024). The PX-6216 will
• controls priority broadcastings. Emergency Panel, timer, and remote microphone will have priority and override
• of BGM broadcasting.

- REMOTE CONTROL OF PERIPHERALS

• The PX-6216 will control source peripherals such as CD, Tuner, and Voice File through the four RS-232
• terminals.

- VARIOUS BGM INPUTS

• 1. TYPE A
• Connection of BGM sources is possible via the 2 XLR combo jack channels, the 6 XLR channels, and 2 RCA jacks.
• Condenser microphones with 24V PHANTOM POWER can be connected on channel 1 and 2. These inputs
• can select between MIC/Line inputs through setting of operation programs.
• 2. TYPE B
• Connection of BGM sources is possible via the 8 detachable Euroblock terminals and 2 RCA jacks.
• Condenser microphones with 24V PHANTOM POWER can be connected on channel 1 and 2. These inputs
• can select between MIC/Line inputs through setting of operation programs

- DSP AUDIO MATRIX

• DSP (Digital Signal Processor) controls signal routing, channel mixing, gains, volume, priority and the 7 band EQ.

- FILE AND PRESET-SETTING

• System settings are stored in internal memory. Stored file can be restored should setup file of operation program is deleted or changed. The PX-6216 with the stored file can operate be operated even if the control PC is offline using memory presets.
