- Scanning System : Progressive Scan

- Image Sensor: 1/3" SONY CMOS Sensor

- Total Pixels: 2000(H) x 1241(V) 2.48M pixels

- Effective Pixels: 1984(H) x 1225(V) 2.43M pixels

- Lens Type: f = 3.6mm, Fixed Lens

- IR Distance: 15m, Φ5 x 24pcs

- Horizontal resolution: Max. 1100TV Lines

- S/N Ratio: More than 50dB (AGC off)

- Min. Illumination: Color:1.0 Lux, BW:0.5 Lux, Color DSS:0.002 Lux, BW DSS:0.0008 Lux

- Video Output: AHD2.0, HD1080p

- Day & Night: Auto / Color / B&W / EXTERN

- Backlight:  Off / BLC / HSBLC

- D-WDR: Off / Auto

- DNR: 2D/3D DNR (Off / Low / Middle / High)

- AGC: 1~15

- Electronic Shutter: Auto / Manual

- Sens-up: Off / Auto

- White Balance: ATW / AWB / AWC / Indoor / Outdoor / Manual

- Motion Detection: Off / On

- Privacy Masking: Off / On (Max. 4 Aears)

- De-Fog: Off / Auto

- Sharpness Control: Level Adjustable

- Power Source:  DC12V / 1.5A

- Power Consumption: 5W

- Operation Temp.: -10℃~+50℃ / Less than 80% RH

- Storage Temp.: -20℃~+60℃ / Less than 80% RH

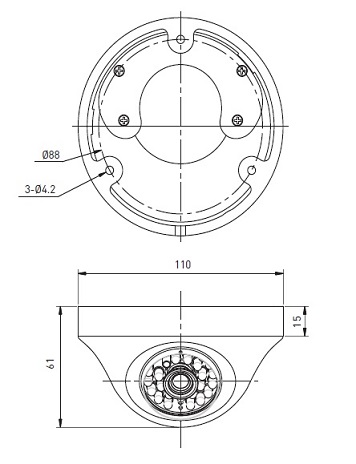

- Dimension: 110(Φ) x 61(H) mm

- Weight: 170g
