FEATURES

• FINE COMMUNICATION

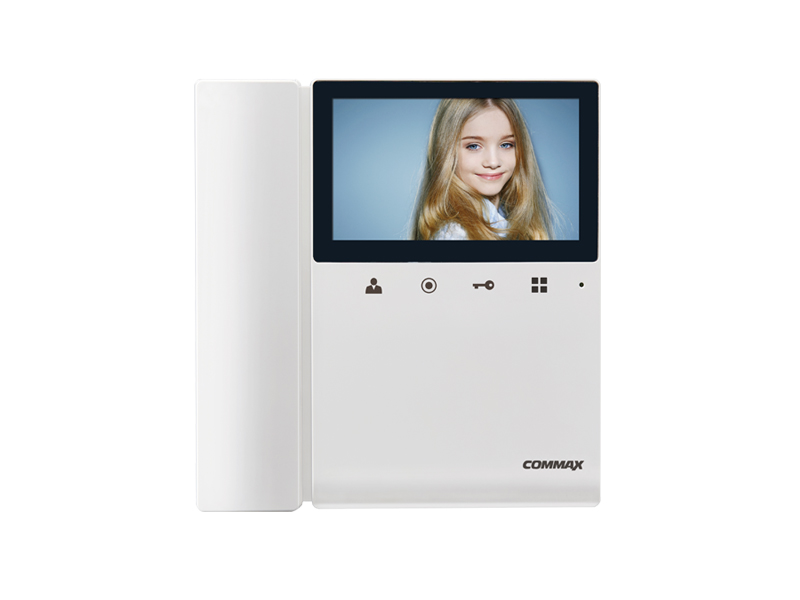

  4.3” color monitor that applied vivid FINE VIEW technology and outstanding audio quality with handset.

• INTERCOMMUNICATION

  Up to 2 monitors and interphones each are expandable per household, providing intercommunication function.

• DOOR ENTRY

  It creates a safer and more convenient living environment with entrance front door release control function.

FUNCTION

• Support 2 monitors, 1 camera and 2 Interphones(CDV-43K)
• Support 2 monitors, 2 cameras and 2 Interphones(CDV-43K2)
• Intercommunication with sub monitor and interphone.
• Built-in memory storing in SD memory (SD Card is not included CDV-43KM)

SPECIFICATION

Power source:       AC 100-240V, 50/60Hz

Display:                 4.3 inch wide color LCD

Mount type:           Wall-mounted type

Operating temp:    0℃~40℃

Wiring:                   Door camera : 4 wires
                              Interphone : 4 wires

Distance:               Door camera : 50m(0.65Ø)
                              Interphone : 30m(0.65Ø)

Consumption:        Standby(CDV-43K, CDV-43K2) : 2.5W
                              Standby(CDV-43KM) : 3.7W
Operating :            8W

Dimension(mm):    157(W)x167(H)x28(D)

WIRING DIAGRAM
