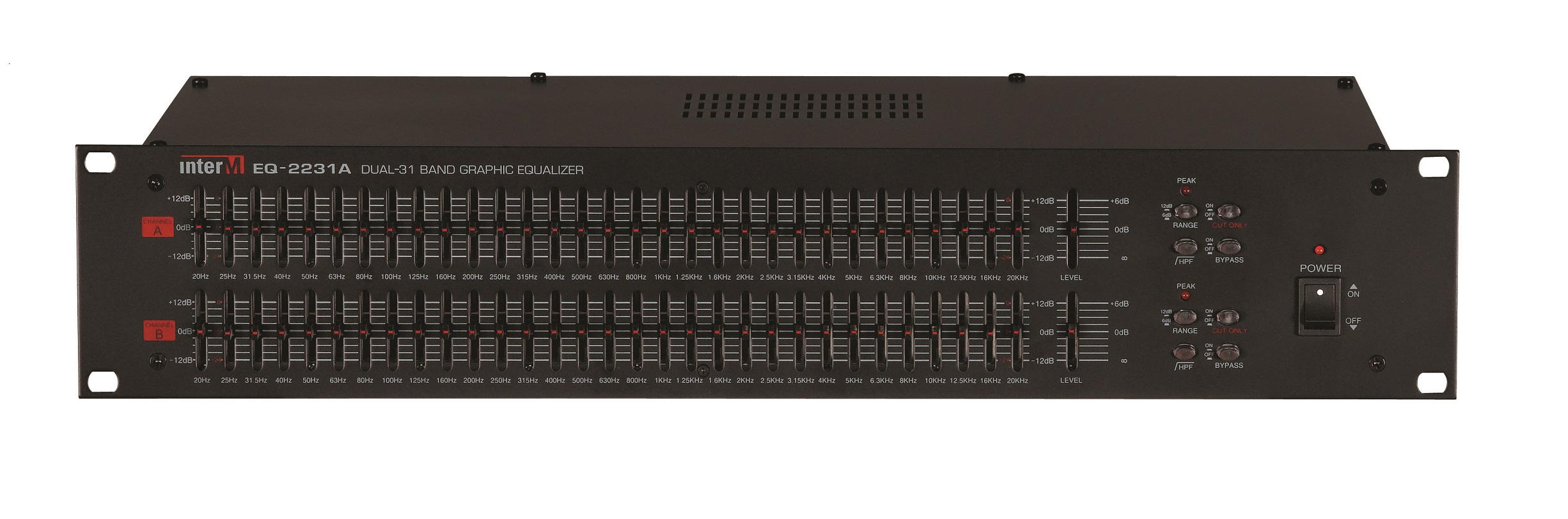

• Dual channel, 31 band graphic equalizer.
• Constant Q (Constant Bandwidth) filter design.
• Long throw (45mm) slider controls.
• Balanced XLR and balanced Euroblock input and output connectors.
• Selectable adjustment range of ±6dB or ±12dB.
• Signal Bypass switch allows for a quick assessment of the effect of the equalizer’s settings.
• Peak warning indicator (active 6dB below peak).
• Selectable, Cut Only or Boost/Cut, operation.
• Selectable 80Hz high pass filter to reduce frequency response below 80Hz.
• Rack Ears for permanent installation in a standard 19” (rack mount width) enclosure.
• Detachable AC power cord.
• DC 24V power input.
