FEATURES

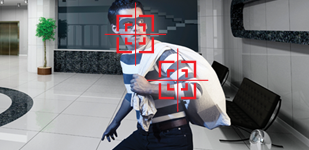

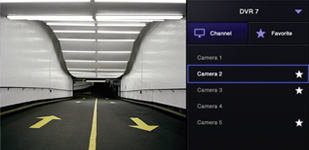

MOTION DETECTION                                                      REAL TIME MONITORING                                             RECORDING VISITORS

      Enhanced security by Motion detection          2 CCTV cameras and 2 door cameras                               Store video & still image

door camera

FUNCTION

• Store video&still image through real-time monitoring & motion detection
• Memory storing in Micro SD card
• Expandable up to 2 monitors with 2 CCTV cameras and 2 door cameras
• Full touch screen
• Video talk and door lock release enable

SPECIFICATION

Power source:     AC 100V-240V, 50/60Hz

Mount type:         Wall-mounted type

Operating temp:  0℃~40℃

Wiring:                *Door camera: 4wires
                            *Interphone: 4wires
                            *CCTV camera: 2wires

Distance             *Door camera: 50m (0.65Ø)
                           *Interphone: 20m (0.65Ø)

Dimension(mm):  276(W)x185(H)x33(D)

WIRING DIAGRAM
