FUNCTION

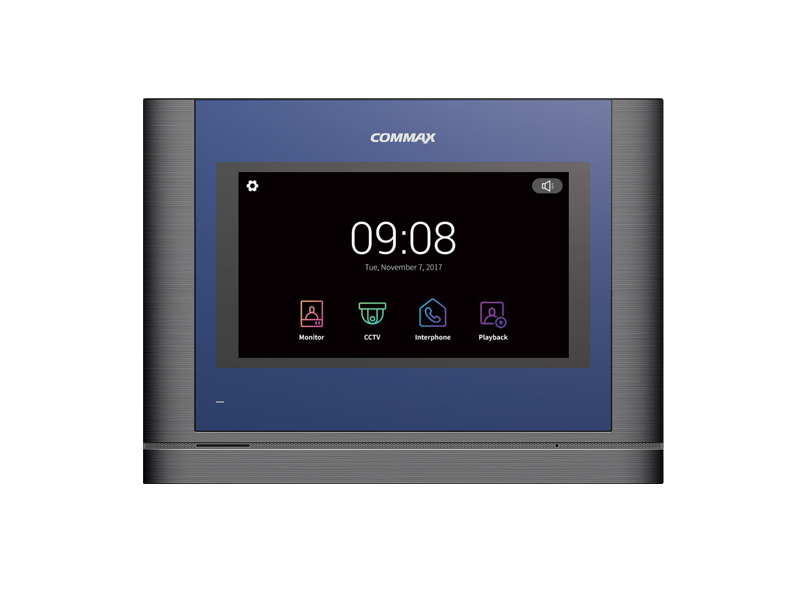

• 7 inch LED Display(1024 X 600), Full touch display
• Connecting 2 individual door camera & 2 CCTV
  (Call from individual door camera, all monitor will be displayed.)
• Intercommunicate between monitors(Page & Call)
  (All master & each monitor has its own ID.) (Can’t connect with DP-4VHP)
• Saving image & movie clip (Without Micro SD, only image can be saved, With Micro SD, image & movie clip can be saved.)
• Motion detection and image saving(Optional)
• CCTV Monitoring for main entrance
• AHD 1.3mega solution

SPECIFICATION

Power source:            AC 100-240V, 50/60Hz

Display:                      7inch wide color LCD

Mount type:                Wall-mounted

Operating temp:         0℃~40℃

Wiring:                       Door camera : 4 wires
                                  Interphone : 4 wires
                                  CCTV : 2 wire

Distance:                  Door camera : 50m(0.65Ø)

Consumption:           Max.10W, standby 3.6W

Dimension(mm):       244(W)×180(H)×18(D)
