FEATURES

FUNCTION

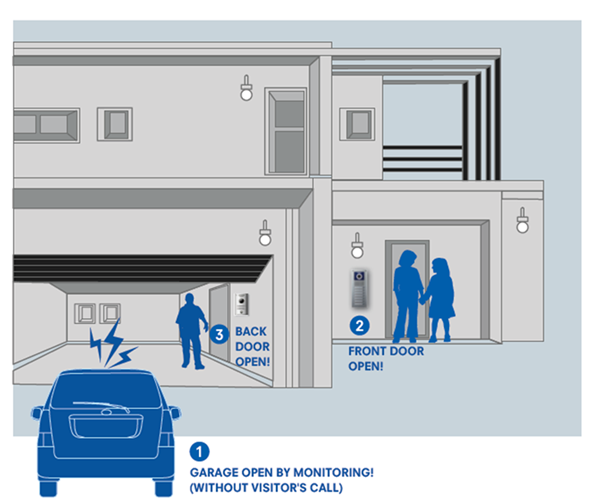

• Door release enabled by monitoring(without visitor's call)
• 3 Door release function(front door, garage, back door)
• 7 inch TFT LCD screen
• Support 2 Monitors, 2 Cameras, and 2 Interphones

SPECIFICATION

power source:   AC 100~240V, 50/60Hz

LCD:                 7 inch TFT LCD

Mounted type:   Wall-mounted type

Wiring:              door Camera 4 wires, sub interphone 4 wires
                         door open : front door back door 2 wires,
                         garage 3 wires

Dimension(mm): 311(W)x168(H)x32(D)

WIRING DIAGRAM
