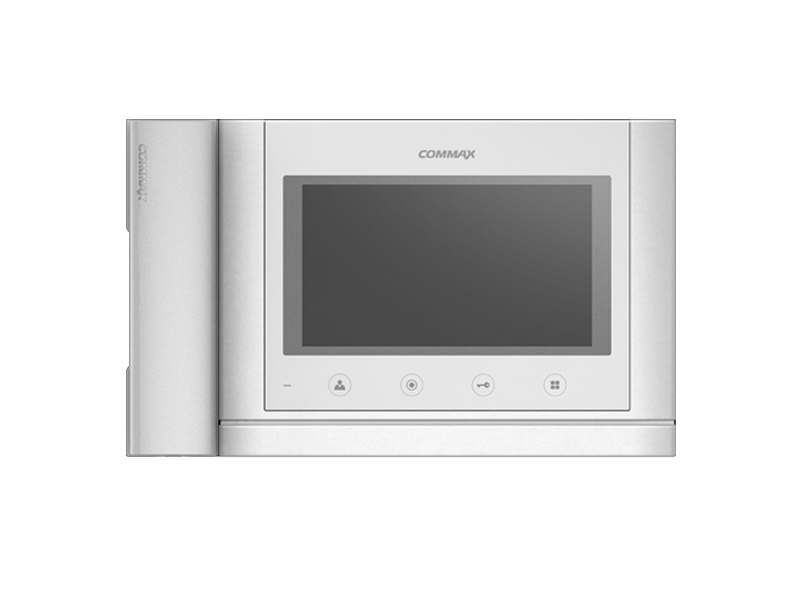

FUNCTION

• Mirror front material applied(option)
• 7 inch TFT LED Display
• Video talk and door lock release enable
• Support 2 Monitors, 2 Cameras and 2 Interphones
• PAL/NTSC convertible
• Memory storing in Micro SD Memory (SD Card is not included CDV-70MHM)

SPECIFICATION

Power source:        AC 100-240V, 50/60 Hz

Consumption:        Max.10W/standby 3.4W

Mount type:           Wall-mounted type

Operation temp:     0℃~40℃

Wiring/Distance:    Door camera : 4 wires
                              Interphone : 4 wires
                              Door camera : 28m(0.5Φ)
Interphone :          30m(0.65Φ)

Dimension(mm):   293(W) X 180(H) X 34(D)

WIRING DIAGRAM
