Feature

- AC/DC Power Distribution

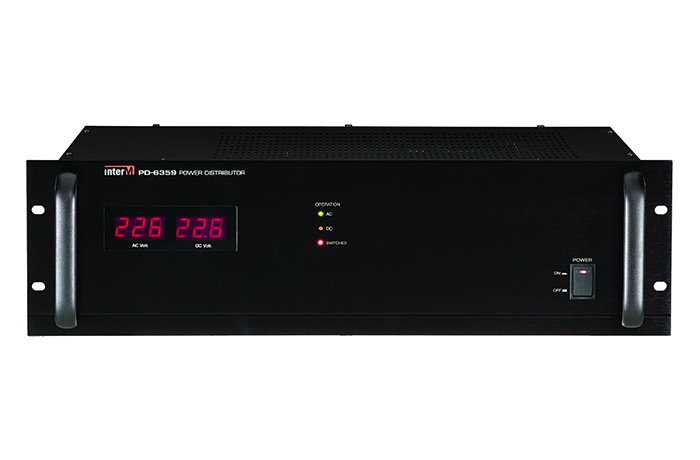

• PD-6359 is the customized AC/DC power solution for Inter-m rack mount system and it will power up and protect all system equipment.
• SWITCHED : The power is supplied when the main power switch is on.
• UNSWITCHED : The power is supplied regardless the main power switch is on or off.
• AMP ONLY : The terminal to delivered a DC 24V from the battery when AC power cut off.

- Heavy Duty Power Distribution

• AC 220V : 2000W x 3(SWITCHED) / 700W x 1(UNSWITCHED)
• DC 24V : 5A

- PC Monitoring

• Power supply status monitoring by window program of 6000 system

- Remote Control

• Remote option allows turn-on and turn-off at a distance by window program of 6000 system or remote contact terminal.

- Sequential Power Distribution

• When power switch is on, it turn-on delay intervals by 2 seconds in order of AC CH3 → AC CH2 → AC CH1.
• When switched to “OFF,” the sequence is reversed.

- Constant Power Distribution

• UNSWITCHED AC/DC power outjet for equipments that require a uninterruptible power supply

- BATTERY INPUT

• The terminal connects with battery and supplies DC power 24V to equipments when power outages occur.

- Voltage/Current Display

• Front LCD displays status of power distribution

- AC/DC Power Fuse

• The easy accessible power fuse provide optimal overload protection and easy maintenance.
