FEATURES

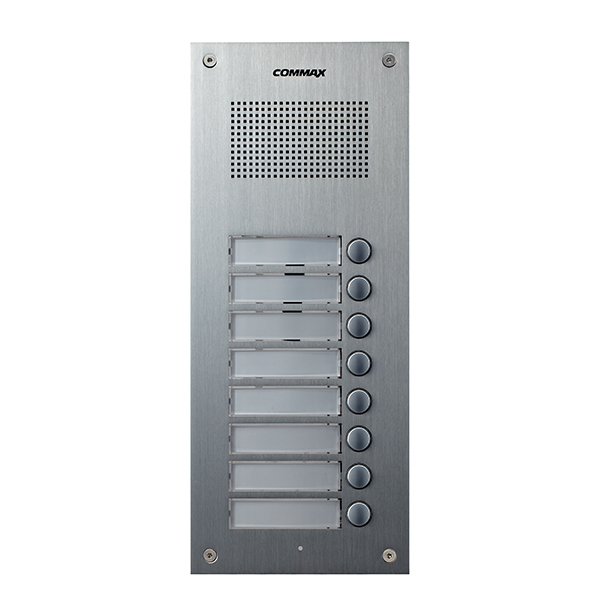

• DR-8UM
• 8 button wide name plate
• Material: Aluminum
• LED light
• House call and talk
• DC 12V

SPECIFICATION

Power source:                   DC 12V

Data Transmission:          3 wire in common +1 wire

Communication:               Hands-free type

Display device:                 LED light

Dimension(mm):               130(W)×315(H)×10(D)

Installation hole size:        110(W)×284(H)(mm)

Fillupbox size(mm):          130(W)×315(H)×10(37)(D)

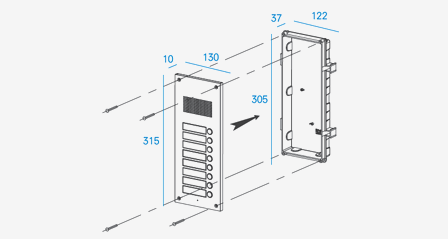

INSTALLATION
