Product Info:

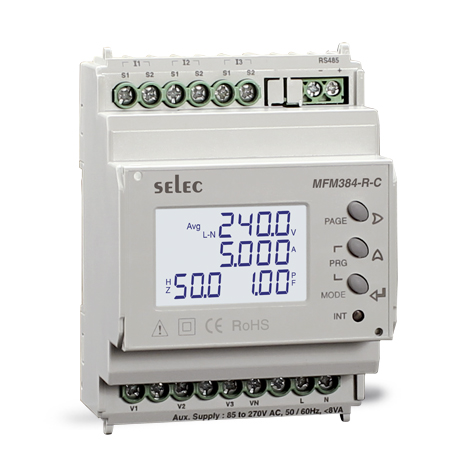

Model:  MFM384-R-C (70x90)

• Measure: V, A. Hz, Pf, kW, kVA, kVAr, kWh, kVArh, kVAh, Tổng kWh, kVAh & kVArh
• Display 3 row, LCD with backlight
• Digit display: 1  row x 4 digit,  2 row x 7  digit or 3 row x 7 digit
• CT Ratio seting : 5A - 10.000A
• Network Connection: 3P4W, 3P3W,1P2W
• Output: Pulse Output Voltage/ Current - 24VDC / 100mA
• Accuracy: Class 1
• PT Primary Ratio Seting: 100V - 500kV
• PT Secondary Ratio Seting: 100 - 500V AC (L-L)
• Power Supply: 85 - 270V AC
• Communication with MODBUS - RS485
