Product Info:

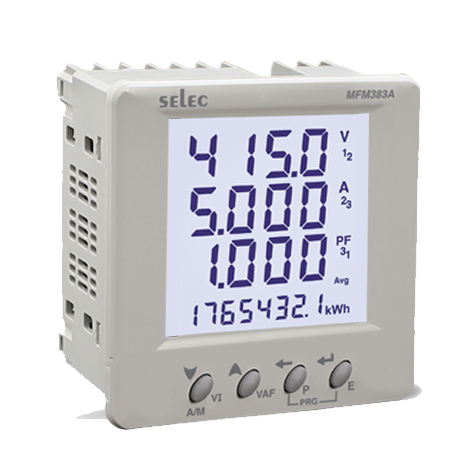

Model: MFM383A (96x96) / MFM383A-C (96x96)

• Measure: V, A. Hz, Pf, kW, kVA, kVAr và đo kWh, KVAh, KVArh
• Display 3 row, 4 digit,  LCD with backlight
• Line  4: 8 digit for kWh
• CT ratio setting: 1A / 5A - 10.000A
• Netwwork Connection: 3P3W, 3P4W, 1P2W, 2P3W
• Output: Pulse output Voltage / Current - 24VDC /  100mA
• Accuracy: Class 1
• PT Primary Ratio Seting: 100V - 10kV
• PT Secondary Ratio Seting: 100 - 500V AC (L-L)
• Power Supply: 85 - 270V AC
• Communication with MODBUS - RS485
