Feature

- Optimized output for both PA&SR use

DPA-50E has OPT applied HI-Z(100 V, 70 V) output terminal and OPTLESS applied LO-Z output terminal individually. HI-Z terminal can be useful with the commercial use as it requires distant transmission and parallel connection. LO-Z terminal is particularly for professional use that requires high quality sound transmission in close range between the speaker and the amplifier.

DPA-50E fits in various distributed control system application as it both suits for commercial and professional use.

- 50 W×8CH multi-channel amplifier

Traditional amplifier sends one input sound source to all output en bloc but DPA-50E is a multi-channel amplifier that can broadcast different sound sources to each 8 channels and control them by zones.

In other words, it can play BGM in cafeteria while broadcasting microphones in the headquarters. This can be a very useful feature from smaller venues such as cafes and stores to larger venues like schools and department stores.

- Signal Link function for multi input

With the Signal Link Switch displayed on the left side, send sound sources input to CH 1 to linked channels at the same time. For instance, switch on CH 2 and CH 1 input sound source is output to CH 3 simultaneously. Use the Signal Link function to utilize DPA-50E as you wish.

(※ Channels that are switched off output inserted sound sources to corresponding channels)

- Secure operation through AC/DC dual power

DPA-50E is AC/DC dual powered and is DC 24 V provided with the battery when urgent situation such as blackout occurs. DC power is emergency power that operates regardless of ON/OFF of the power switch. It is automatically switched to AC power even when DC power is operating if AC power is working in order.

- Priority Function

Automatic emergency broadcasting is available using priority function of DPA-50E in emergency situations. When contact closure is inserted to PRIORITY terminal on the rear panel, signals input to the PRIORITY terminal are output before the ones entered to PGM INPUT terminal.

For instance, PGM INPUT of CH 7 is muted and sound sources input to the PRIORITY audio terminal are broadcasted when the contact closure is inserted to the PRIORITY terminal of CH 7.

※ PGM : Programmable

- LED Indicators

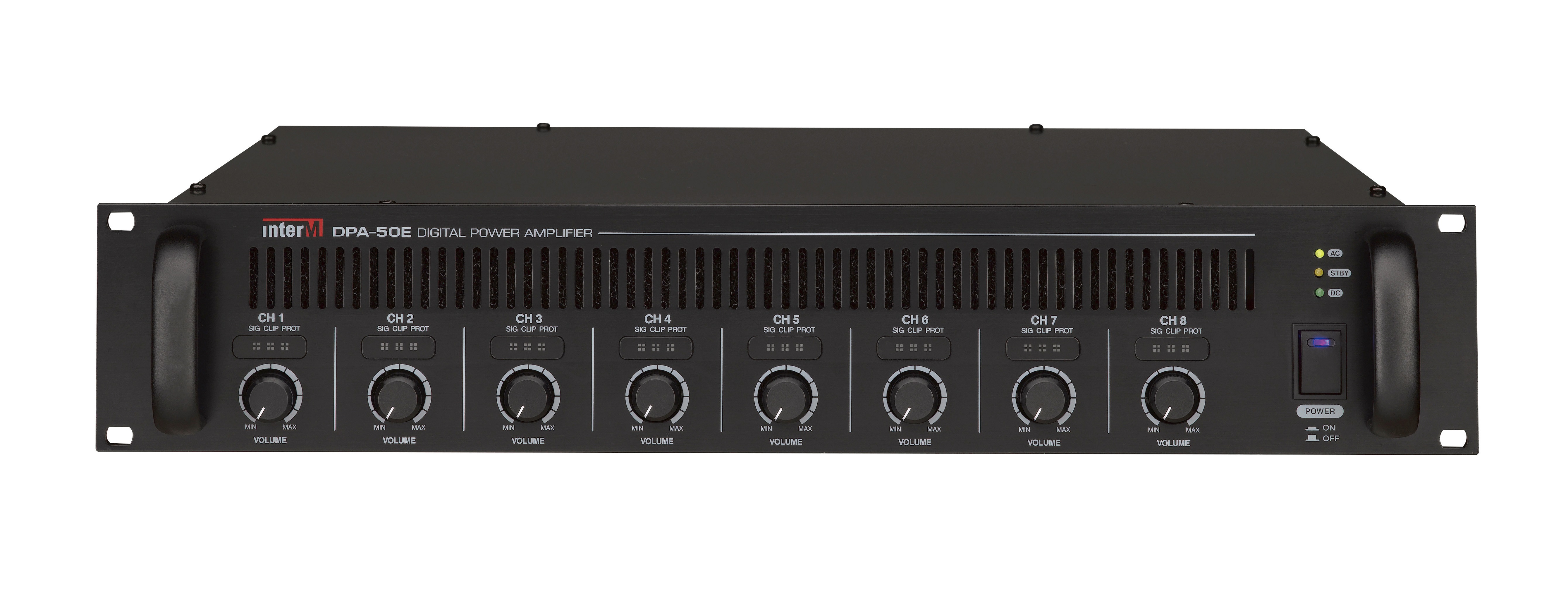

The backlit LED enables to monitor AC/DC power, STBY status, SIG(-30 dB) output level of each channel, Clip and Protect status. Also, with the volumes of each channel on the front panel, separate volume control is possible.

- Stability guaranteed with perfect protection circuit

Stability of the device is guaranteed with OVP(Over-Voltage Protection) function which perceives and blocks when in/output voltage is higher or lower than the settled voltage range, UVP(Under-Voltage Protection) and overcurrent protection function.
