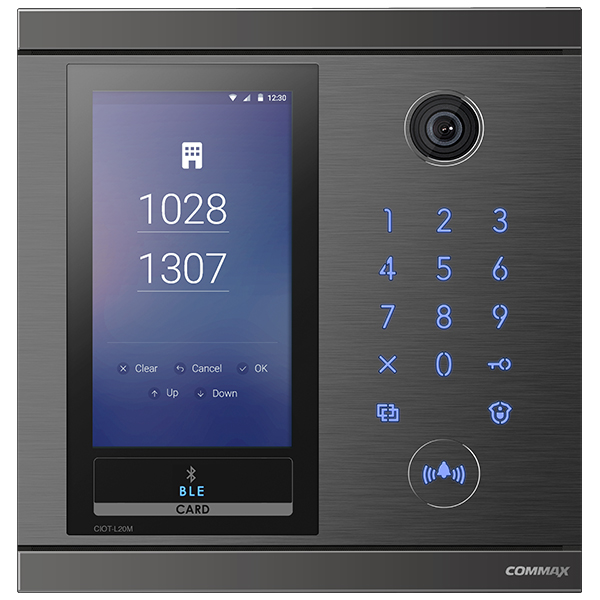

FEATURES

• VIVID METAL DESIGN

  It creates luxurious atmosphere with vivid metal design.

• PROXIMITY SENSOR

  Proximity sensors applied to control the LCD panel lighting to reduce power consumption.

• 7 INCH LCD

  7 inch LCD panel with user-friendly GUI.

• VARIOUS ACCESS CONTROL METHODS

  Various access control methods, such as password verification, BLE, RFID card, and integrated identification control with security guard station are provided.

FUNCTION

• Metal is applied for front material
• 7 inch LED Display
• SIP-based VoIP system
• 2M pixel Camera
• BLE recognition
• TCP/IP Communication
• RFID card
•  Motion Detection

SPECIFICATION

Power Source:   DC 14V

Display:              7 inch TFT LED display

Mount type:        Flush-mounted type

Operating temp.:-40ºC~+50ºC

Wiring:               LAN(CAT.5e)

Storage:            4GB eMMC FLASH

Dimension(mm): 250(W)x255(H)x7(36)(D)

Fill up Box Size(mm):210(W)×240(H)×81(D)
