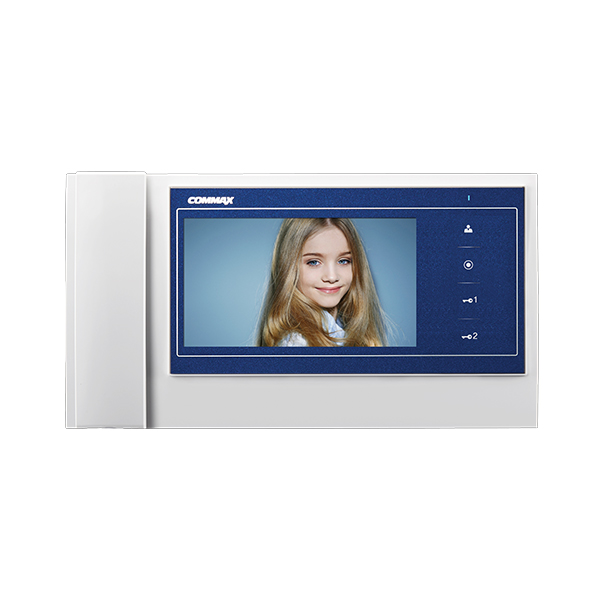

FEATURES

FUNCTION

• Connectable with multi-button panel
• Door release enabled by monitoring(without visitor's call)
• 3 Door release function(front door, garage, back door)
• 7 inch TFT LCD screen
• PAL /NTSC Convertible
• Support 2 Monitors, 2 Cameras, and 2 Interphones
• Video talk and door lock release enabled

SPECIFICATION

power source:          AC 100~240V, 50/60Hz

Operating temp:       0℃~40℃

Mounted type:          Wall-mounted type

Wiring:                     *Door Camera 4 wires, sub interphone 4 wires
                                *Door open: front door back door 2 wires,
                                *Garage 3 wires:

Distance:                 Door camera : 28m (0.5Ø) / Interphone : 30m(0.65Ø)

Dimension(mm):     243(W)x168(H)x35(D)

WIRING DIAGRAM
