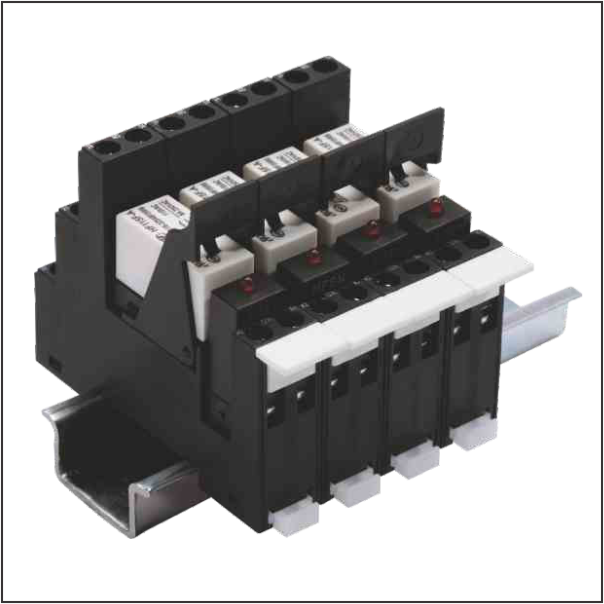

Module of communication 2 contacts

HOTLINE: (84-28) 3762 4888 - EMAIL: DENIC@DANHDANG.VN

product detail

There is LED status indicator

Operating temperature: -40oC - 70oC

Nominal voltage: 300VAC

Connection wire section: 2.5 sq.mm

Parameter coil coil relay

coil infomation	DC	AC	AC	AC
Voltage operates normally	24VDC	24VAC	110VAC	230VAC
Maximum permissible voltage	26.4VDC	26.4VAC	126.5VAC	253VAC
Coil capacity	400mW	0.75 VA	0.75 VA	0.75 VA

Parameter contact relay

Contact type	2 CO	1 CO & 2 CO
Current and pressure operation	8A 250VAC/24VDC	12A/16A/250VAC (1CO) 8A, 250VAC (2CO)
Mechanical strength	10⁷OPS	10⁶OPS
Electric durability	10⁵OPS	10⁶OPS

product relative

Slim Relay 1CO

The communication module has a basic fuse and the communication module has an error status report

Slim Relay SSR

Communication Modules 2 NO (DPST) - G2R-A2

Communication module with digital input and optical isolation
