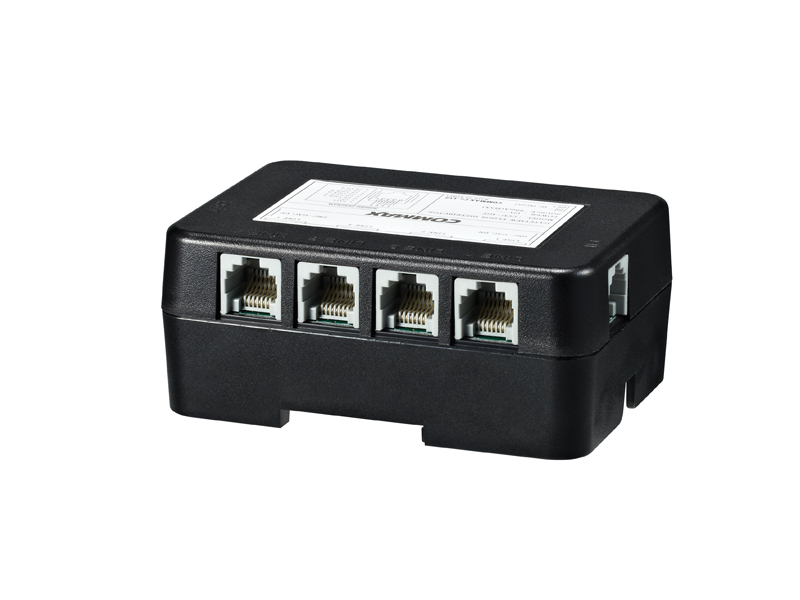

FEATURES

• CCU-4GF enables easy wiring by allowing direct connections from the device to Gate View monitors, eliminating inchin-outinch(BUS wiring method) connection processes

FUNCTION

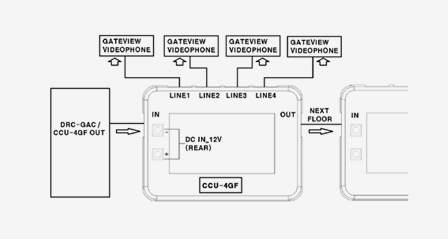

Enables "STAR" wiring method for

Gate View monitor connections

CCU-4GF-to-CCU-4GF enabled to

expand up to 40 units limited to

300 meters

1 unit supports 4 connections

SPECIFICATION

Power:             DC 12V, 1A

Mount type:      Wall-mounted type

Transmission:  Lobby 8 Lines(Polarity)
(RJ45 CAT.5e Patch Cable)

Distance:          Maximum 300m
(Possible to connect Max 40 units)

Dimension(mm):106(W)×76(H)×44(D)

WIRING:            CAUTIONS FOR INSTALLATION
