FUNCTION

• Talk with a visitor
• Door release
• 2 wires with non-polarity
• AC 12V Power enable with Door release button

SPECIFICATION

Power source:     AC 220V, 50Hz only

Mount type:         Wall-mounted type

Wiring:                 Call: 2 wires
                            Door Release: 2 wires

Distance:            100m(0.65Ø) / 150m(0.8Ø)

Dimension(mm): 98(W)x208(H)x43(D)

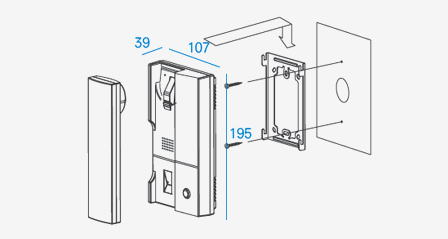

INSTALLATION
