FUNCTION

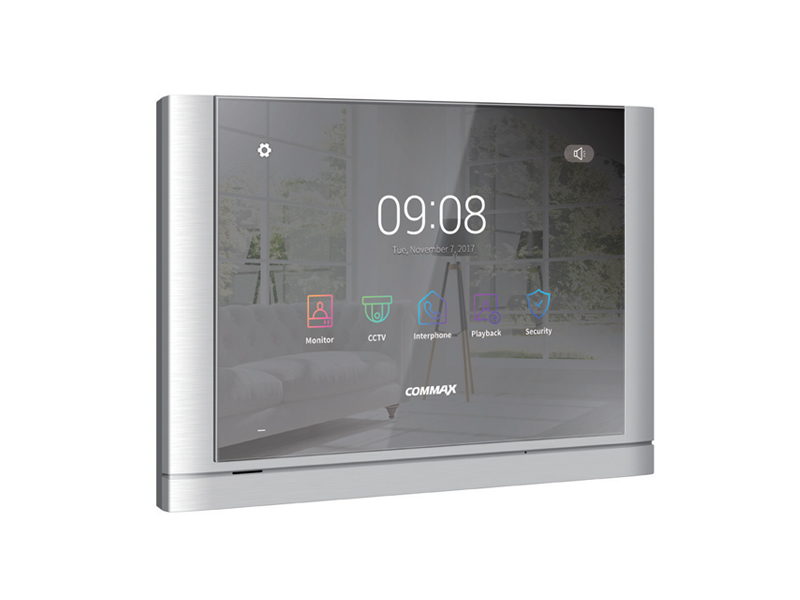

• 10.1 inch LED Display(1024 X 600), Full touch display
• Security function (Security sensor 1,2)
• Connecting 2 individual door camera & 2 CCTV
• (Call from individual door camera, all monitor will be displayed.)
• Intercommunicate between monitors(Page & Call)
• (All master & each monitor has its own ID.) (Can’t connect with DP-4VHP)
• Saving image & movie clip (Without Micro SD, only image can be saved, With Micro SD, image & movie clip can be saved.)
• Motion detection and image saving(Optional)
• CCTV Monitoring for main entrance
• DVR function with SD card (256G)
• AHD 2mega solution

SPECIFICATION

Power source:               AC 100~240V, 50/60Hz

Display:                         10.1 inch wide color LCD

Mount type:                    Wall-mounted type

Operating temp:             0℃~40℃

Wiring:                            Door camera: 4 wires
Interphone: 4 wires:       CCTV: 2 wires

Distance:                        Door camera : 50m(0.65Ø)

Consumption:                 Max.10W, standby 3.4W

Dimension(mm):            308(W)x213(H)x23(D)
