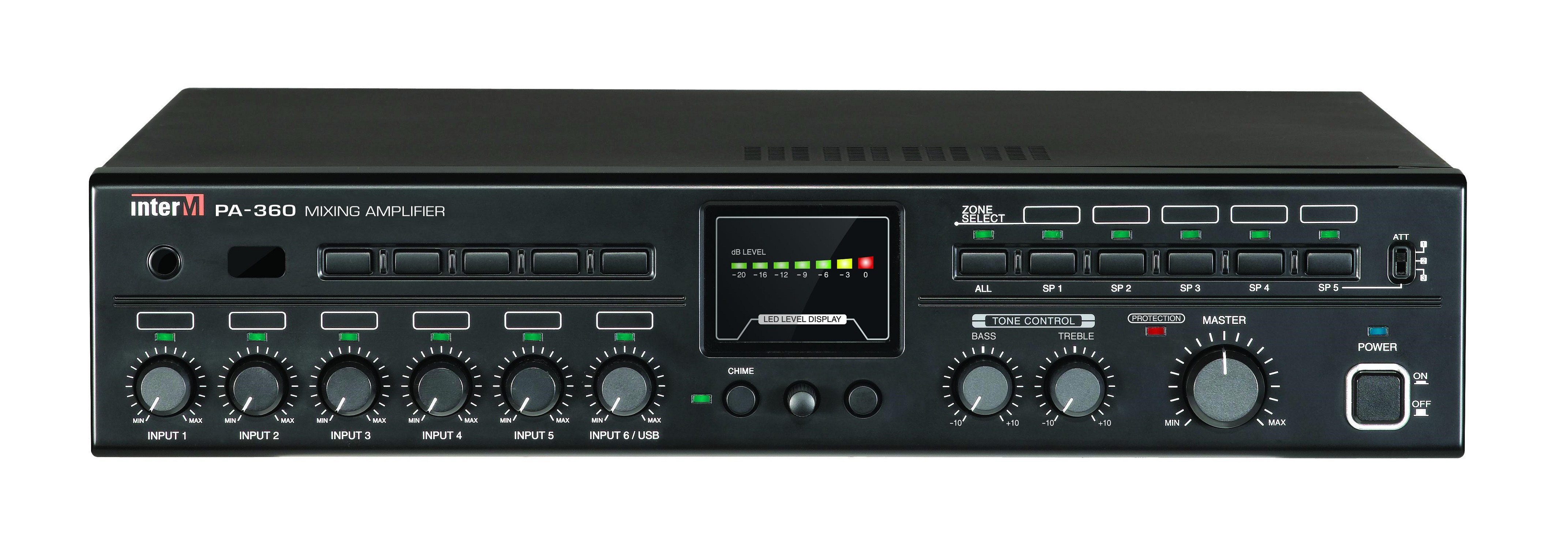

360W Mixing Amplifier - PA-360
The Inter-M PA Series is an mixing amplifier. They are complete and economical multi-purpose desktop mixing amplifiers providing a cost-effective solution to public address and other similar applications.
It is a successor model of PA-2000A / 4000A / 6000A which are the best-selling models of Inter-M. While retaining most of the features of the existing system, it is designed to make higher amplifier output and more compact design than conventional systems by using the technology of Class-D amplifier.
Six versions are available with outputs of 60, 120, 240, 360, 480 and 600 watts respectively into Low-Impedance(4 Ω) or High-Voltage(70 V/100 V line) speaker systems. Especially from PA-240 to PA-600 has designed a High-Voltage output without the output transformer(OPT) by using the Inter-M digital amplifier technology.
The PA Series amplifier is designed for reliable service for voice reproduction and BGM applications.
It is an ideal solution for medical offices, restaurants, schools, etc.
product detail
- 2U Size
- 360W output power
- SMPS delivers high power output with low power consumption and weight reduction
- 5 Microphone/Line Inputs, EXT IN and TELL IN with individual volume control
- Input Level LED Monitor per channel
- Separate BASS/TREBLE Tone Controls
- 5 zone selection switches
- Independent built-in Attenuator over Zone 5.(Maximum 50W, more than 200Ω)
- PRIORITY
- Remote MUTE and CHIME terminal
- VCA Remote volume controll
