FEATURES

EASY-TO-USE                                                          ENHANCED SECURITY                                        CONVENIENT INSTALLATION

It can choose one of 2 types (Surface mounted     Check visitors and control entrance by releasing       It enables video, audio, and data communication

type/Desktop) depending on the circumstances.        door lock and talk with households.                       via one UTP cable to simplify the installation.

FUNCTION

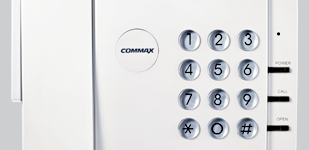

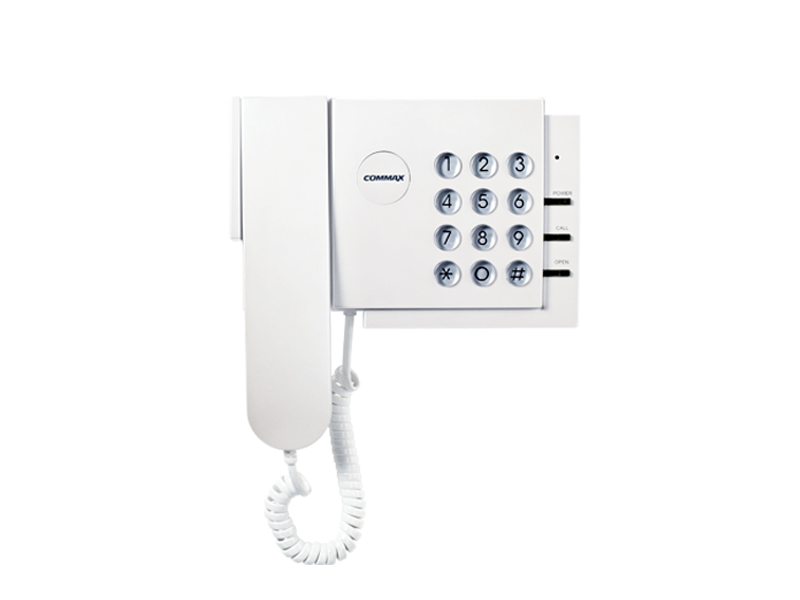

• Simple-to-use  phone optimized for security station, exclusively for gate view.
• Paging and calling a household
• Calling lobby phone
• Releasing doorlock of public entrance

SPECIFICATION

Power source:           DC 12V, 1A

Power consumption: Max. : 2W

Mount type:               Wall-mounted type / Desktop

Operating temp:         0℃~40℃

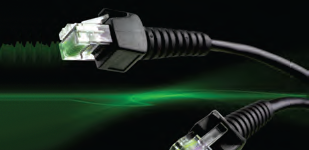

Wiring:                        UTP(Cat. 5e)

Distance:                     Maximum 1Km

Dimension(mm):         196(W)×130(H)×51(D)

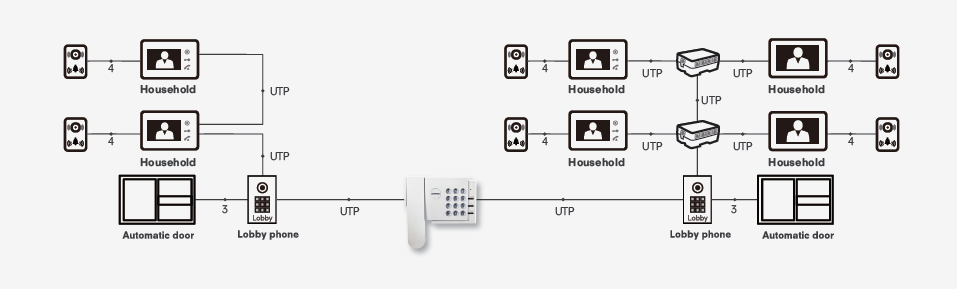

WIRING DIAGRAM
