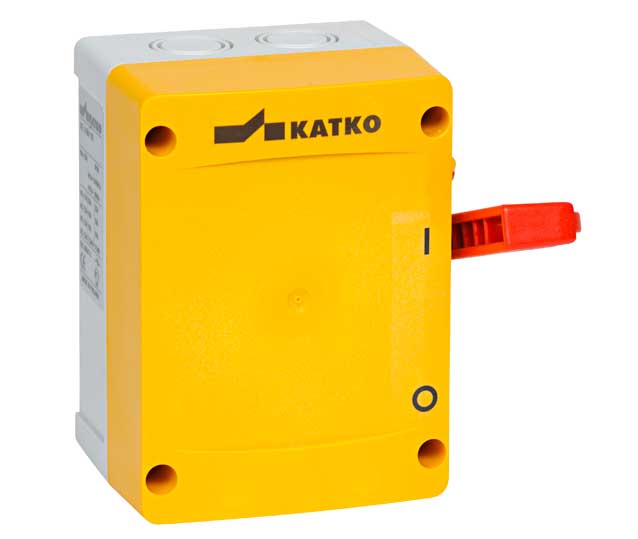

Available in grey/black, yellow/red or fireman red
Good resistance against UV and many chemicals
Self-extinguishing material and excellent insulating properties
Fully rated Load Break Switch breaking capacity of 8 x AC23 rating
Cable entries 2 x M20/M25 as standard on the top and bottom and M20 on the base
Mounting holes: 118,0 x 84,0
Padlockable handle in 0-position and also available in 1-position
Knock-out glands are easy to open
Large cable terminals 1,5 - 16 mm 2
Tested according to IEC 60947-3
CERTIFICATES
CE RoHS GostR EAC
